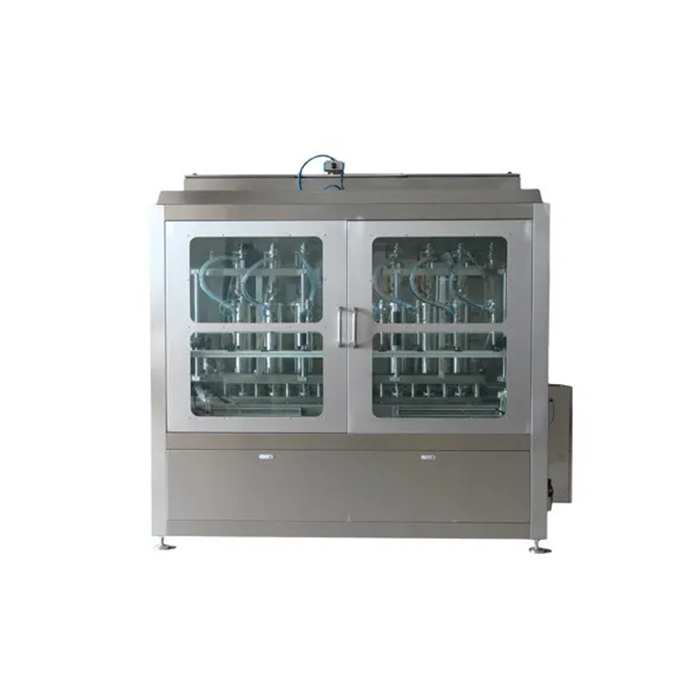

Automatic PET Bottle Filling Machine / Bottling Line / Project

Stroj tri v enem za PET plastenko združuje funkcijo izpiranja, polnjenja in zapiranja skupaj. Temelji na napredni tehnologiji v tujini in je zasnovan v skladu z zahtevami za predelavo polnjenja z vodo

Glavne značilnosti

---

1. This machine has a compact structure, completed control system, easy to operate and highly automated.

2. By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.

3. The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.

4. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

5. The machine adopts high effective cap sorting system and completely self control and protective device.

6. The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.

7. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

8. The electric components and pneumatic components are all introduced from world famous brand products.

Količina delovnega položaja	Izpiranje 32, polnjenje 32, zapiranje 10
Proizvodna zmogljivost	15000BPH (500ml)
Tlak vira zraka	0,7 Mpa
Poraba zraka	1,2m3 / min
Tlak vode za izpiranje	0,2-0,25Mpa
Kapaciteta vode za izpiranje	2,5T / h
Glavna moč motorja	3,2kW
Skupna moč	4,8kw
Dimenzija	4250X2150X2200 mm (L × Š × V)
utež	5200kg

Nudimo tudi popolno avtomatsko napravo za stekleničenje s čisto vodo

Vsebuje 4 glavne dele:

1. Plastic bottle blow molding machine
2. Water cleaning system
3. Water washing, filling, capping machine.
4. Conveyor system, labeling machine, dating machine, film wrapping machine

Glavni opis celotne vrstice:

---

1. The plant can produce different volume bottles, from 200ml to 2000ml bottles, round and square bottles, plastic and glass bottles. It is very easy to change the different bottle molds.

2. The plant is highly automatic, you can operate on the touch screen to adjust the machine speed and working.

3. We have different speed plants, commonly, 2000BPH, 4000BPH, 7000BPH, 10,000BPH, 15000BPH..ect.

4. The material is stainless steel 304, food grade much clean and safe.

5.  We provide the engineers for customer installation, training in customer's factory.

Modeli in seznam hitrosti

---

Model	XGF8-8-3	XGF14 / 12/5	XGF16 / 16/5	XGF24 / 24/8	XGF32 / 32/10
Umivanje rok	8	14	16	24	32
Polnilni ventili	8	12	16	24	32
Ujemanje rok	3	5	5	8	10
Primerne plastenke iz PET / stekla (150 ml do 2000 ml)
Zmogljivost (hitrost) Podstavek na 500ml	2000BPH	5000BPH	7000BPH	12000BPH	15000BPH

Dobavitelj blagovnih znamk električnih komponent

---

Glavna sestava	Opis Dobavitelj
PLC	Mitsubishi (Japonska), Siemens (Nemčija)
Zaslon na dotik	Weinview (Tajvan)
Frekvenčni pretvornik	Mitsubishi (Japonska), Siemens (Nemčija)
Zračno stikalo	Schneider (Francija)
Breaker	Siemens (Nemčija)
Kontaktor	Siemens (Nemčija)
Fotoelektrično stikalo	Omron (Japonska)

Hitre podrobnosti

---

Vrsta: Polnilni stroj
Stanje: Novo
Uporaba: pijača, kemična, medicinska
Vrsta embalaže: Steklenice
Embalažni material: plastika
Samodejna ocena: Samodejno
Vrsta pogona: električna
Napetost: 380V / 220V
Moč: 4,8KW
Kraj izvora: Šanghaj, Kitajska (celina)
Blagovna znamka: NPACK
Dimenzija (D * Š * V): 4250X2150X2200 mm
Teža: 5200KGS
Certifikacija: CE, ISO, SGS
Poprodajna storitev: Inženirji, ki so na voljo za servisiranje strojev v tujini
Tovarna: STROJNI STROJI
Velikost steklenice: 150ml do 2000ml
Premer vratu za steklenice: 15-55 mm
Material steklenice: plastika / steklo
Hitrost (osnova na steklenici s 500 ml): 15000B / h
Krmilni sistem: PLC zaslon na dotik (MITSUBISHI JAPAN)
Pokrov: Vijak / Pritisnite pokrovček
Kap dvigalo: Imej
Polnilna tekočina: mineralna / čista voda

---
