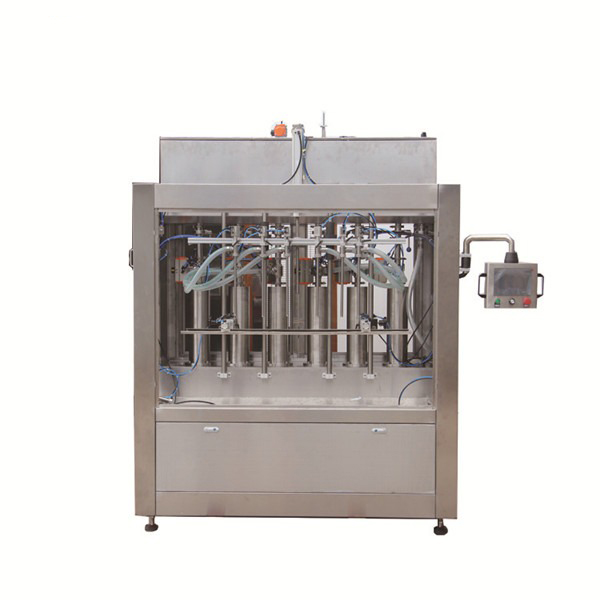

Tekoči stroj za polnjenje posode

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.

Specifikacije

---

stroj za polnjenje tekočine za pomivanje posode
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C

Opis

---

CE EU
ISO9001
Izpolnjujejo zahteve GMP
longlife of service, low mainteinance rate

Glavna funkcija

---

Stroj je napredni visoko precizni polnilni stroj, ki lahko samodejno zaključi štetje, polnjenje in zapiranje steklenic.

Lastnosti

1. Kompaktno strukturiran, lep videz, enostaven za uporabo in zelo avtomatiziran.

2. Stik komponent z materialom je iz nerjavečega jekla, ki ga je enostavno očistiti.

3. Prostornina polnjenja se nadzoruje s filmskimi ventili, da se zagotovi natančnost.

4. Hitro in zelo natančni polnilni ventili ne puščajo.

5. Opremljen je z visoko učinkovitim sistemom za dovajanje pokrovčkov.

Možnost jezika

Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.

Glavne značilnosti:

---

1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.

2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.

3. Lahko si zapomni številne parametre, koristne za različne specifikacije, spremenjene, vse odmerke polnjenja lahko prilagodite z zaslonom na dotik.

4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.

5.  Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.

6.  With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.

Glavni tehnični parameter

---

Postavka	Ime	Tehnični parameter
01	Dimenzija stroja (L * Š * V)	2200mm * 1400mm * 2800mm
02	Teža stroja	Okoli 1400Kg
03	Notranji premer odprtine zabojnika	≥φ35mm
04	Primerna posoda	1Liter .2Liter
05	Višina posode	80-350mm
06	Napajanje	AC 380V; 50 HZ
07	Moč	5Kw
08	Natančnost polnjenja	≤ ± 1%
09	Vir zraka	0,6Mpa stabilen in čist stisnjen zrak
11	Število šob za polnjenje	13
12	Višina transporterja	900 mm ± 50 mm
13	zmogljivost	≤3200 steklenic / uro (vzemite vodo kot test)
14	Steklenica v smeri podajanja	Od leve proti desni

Hitre podrobnosti

---

Vrsta: Polnilni stroj
Stanje: Novo
Uporaba: Kemična
Vrsta embalaže: Steklenice
Embalažni material: Les
Samodejna ocena: Samodejno
Vrsta pogona: Pnevmatika
Napetost: 220v
Moč: 3KW
Kraj izvora: Šanghaj. Kitajska (celina)
Blagovna znamka: VKPAK
Dimenzija (D * Š * V): 2200 mm * 1400 mm * 2800 mm
Teža: 1400
Certifikacija: CE
Poprodajna storitev: Inženirji, ki so na voljo za servisiranje strojev v tujini
material: SS304
PLC: Panasonic
Zaslon na dotik: Panasonic

Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.

One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.

Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.

The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.

When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.

In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
